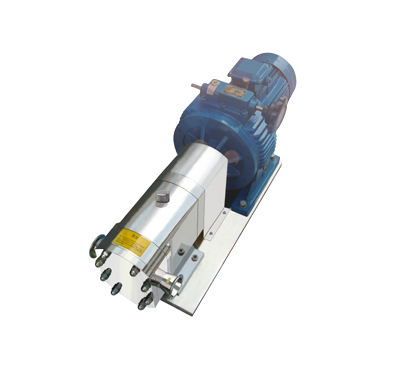

Technical Parameter:
As the rotors rotate, the spaces between the lobes and the casing are successively filled with fluid, which is transported to the discharge nozzle with a fixed amount of displacement. The pumped fluid forms a continuous stream thanks to the tolerances between the lobes and the pump casing, thus ensuring an efficient pumping.
Materials
|
Parts in contact with the product |
AISI 316L or 304 |
|
Gaskets |
EPDM |
|
Mechanical seal |
graphite/Sic/EPDM SiC/C/EPDM |
|
Internal surface finish |
Ra ≤ 0.4 µm |
|
External surface finish |
bright polish |
Options
Mechanical seals: SiC/SiC or TuC/SiC.
Cooled mechanical seal, pressurised double mechanical seal, lip seal or O-ring seal.
Gaskets in EPDM or PTFE.
Heating chamber (Jacket).
Isolation can.
Vertical support.
Rectangular nozzle.
Various kinds of drives and protections (gearbox drive with optional frequency converter.
pulley/mechanical drive speed selector).
Trolley and/or control panel.
Connections: clamp, SMS, RJT, etc.
Cooled mechanical seal, pressurised double mechanical seal, lip seal or O-ring seal.
Gaskets in EPDM or PTFE.
Heating chamber (Jacket).
Isolation can.
Vertical support.
Rectangular nozzle.
Various kinds of drives and protections (gearbox drive with optional frequency converter.
pulley/mechanical drive speed selector).
Trolley and/or control panel.
Connections: clamp, SMS, RJT, etc.
|
NO |
Model |
volume of rotor（L） |
range of speed（rpm） |
Flow
（L/h） |
Type I,II power spply（（Kw） |
Type Ⅲpower spply
（Kw） |
suction and discharge（mm） |
|
1 |
TR-I-05 |
0.028 |
200-500 |
330-840 |
0.55 |
0.37 |
25 |
|
2 |
TR-I-1 |
0.04 |
200-500 |
480-1200 |
0.55 |
0.37 |
25 |
|
3 |
TR-I-2 |
0.075 |
200-400 |
900-1800 |
0.75 |
0.55 |
32 |
|
4 |
TR-I-3 |
0.095 |
200-400 |
1140-2280 |
1.1 |
0.75 |
32 |
|
5 |
TR-I-4 |
0.118 |
200-400 |
1400-2800 |
1.5 |
1.1 |
38 |
|
6 |
TR-I-5 |
0.18 |
200-400 |
2000-4000 |
2.2 |
1.5 |
38 |
|
7 |
TR-I-6 |
0.28 |
200-400 |
3000-6000 |
3 |
2.2 |
50 |
|
8 |
TR-I-7 |
0.34 |
200-400 |
3600-7200 |
4 |
3 |
50 |
|
9 |
TR-I-8 |
0.424 |
200-400 |
4500-9000 |
5.5 |
4 |
50 |
|
10 |
TR-I-9 |
0.53 |
200-400 |
5700-11000 |
7.5 |
5.5 |
63.5 |
|
11 |
TR-I-10 |
0.7 |
200-400 |
7000-14000 |
7.5 |
5.5 |
63.5 |
|
12 |
TR-I-11 |
1.0 |
200-400 |
12000-24000 |
11 |
7.5 |
89 |
|
13 |
TR-I-12 |
1.6 |
200-400 |
19000-38000 |
11 |
11 |
89 |
|
14 |
TR-I-13 |
2.0 |
200-400 |
24000-48000 |
15 |
11 |
108 |
