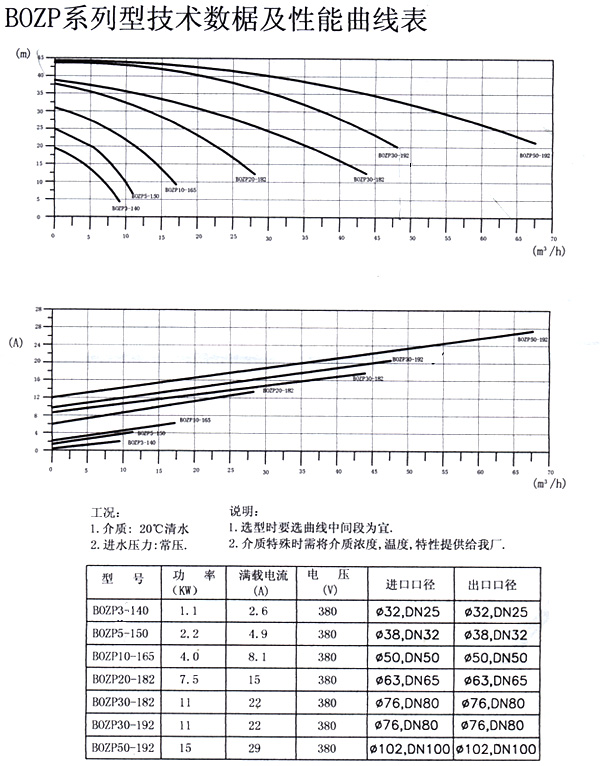

Technical data

1.Model BOZP  stands for :   take BOZP3-140 for example ：

　   BOZP  3— 140

        BOZP: self priming pump

         3:        flow（T/H）

   140:     Nominal out diameter

2.Material: 304 or 316 L (for selection)

Working temperature:-10℃-110℃ (sterilization temperature 140℃)

Working environment and medium confirm whether explosion protection is needed.

Sealing material: standard rubber sealing ring adopts silicon rubber, fluororubber ethylene propylene dienerubber, polytef, butyronitrile.

Outlet and inlet connection type: ferrule quick-install, DIN standard loose joint, flange, welding etc.
