1.Product Desciption:

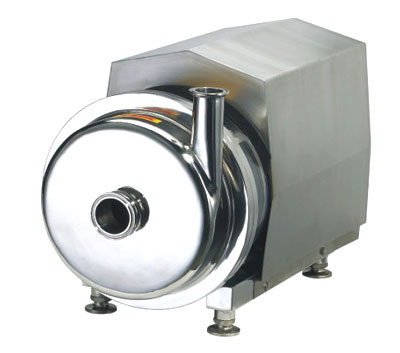

BOGP high pressure Centrifugal pump is designed for the process which requested for low flow rate but high transfer head (pressure).

Applications

BOGP centrifugal pump is a sanitary centrifugal pump that meets the highest sanitary requirements for use in the food-processing and pharmaceutical,dairy,milk,bear industries.

Some of its uses include processes in the brewing, dairies and beverage industries in general, and with the appropriate options it can also be used in complex applications such as evaporators, concentrators, distillation towers, decanting of syrups, and purified-water loops in the pharmaceutical industry.

2.Working principle:

Housed inside the casing, the impeller rotates in conjunction with the pump shaft .With this arrangement, the impeller blades convey energy to the fluid in the form of kinetic energy and pressure energy.

Due to the special design of the pump casing and impeller ,the BOGP centrifugal pump has much higher pressure than standard centrifugal pump.

3.Technical parameters:

Design and features

High pressure and head.
Different connections standard: DIN, SMS, JIS, ISO
Open impeller manufactured with stainless steel investment casting technology.
Sanitary mechanical seal.
Pump certified according to 3A sanitary standards.
Very robust stainless steel cast lantern.
Pump support from AISI 304.

4.Installation dimensions:

Materials

Parts in contact with pumped media	AISI 316L or 304
Other parts in stainless steel	AISI 304
Gaskets (standard)	EPDM (FDA)
Mechanical seal (standard)	graphite/Sic/EPDM
Inside surface finishing	Ra < 0.4 um.
Outside surface finishing	Mirror polished

Options

Mechanical seals in SiC/C, SiC/SiC or TgC/SiC.
Cooled or double mechanical seal.
Gaskets in FPM (Viton? and PTFE.
Connections: Clamp, SMS, RJT, etc.
Motors with additional protection.(movable, Explosion proof)
Trolley and/or Switchboard.
