1.Product Desciption:
Magnetic mixing is a way of complete sealed , undisclosed, bear corrosion, Static dead sealing through welding isolative sleeve replace dynamic mechanical sealing, which can completely solve the leaking problem of mechanical sealing. The equipment is mainly applicated for Pharmaceutical, Food machinery heating , resolving the material.
Application range: mixing devices various stainless steel reaction tanks and liquid-compounding tanks.
Working conditions: the places need high-standard sealing such as inflammable explosible, easy to leak
Features:
1. Static dead sealing through welding isolative sleeve replace dynamic mechanical sealing, which can completely solve the leaking problem of mechanical sealing.
2. Simple structure, east to dismantle, easy to clean, no dead space.
3. a mixing unit is installed on the bottom ,which can mix under few matter ,with unique mixing oars, and can be suitable to mix various mediums.
2.Working principle:
Type of BOCJ hygienic-magnetic mixing is mainly designed for the field of pharmaceutical, biological engineering and food industries according to GMP modification . Good performance, reasonable structure, small size, reliable. There are magnets inside, outside magnets, electrical isolation kits and transmission components and other parts. Apply to all stainless steel reactor. Tank mixing of fluids in the hygienic-magnetic mixing of BOCJ contact materials used in all parts 316L\304 materials, Magnetic Coupling driven by the principle of axial mixing operation work. Welding isolation sets static dynamic mechanical seal to replace dead seal, a mechanical seal can not be avoided completely solve the run, run,drop
3.Technical parameters:
temperature materials : -30-200
pressure -0.1-1.6Mpa (for the elections)
二、 Technical Parameter：
|
Model |
Torque |
power | ||
|
150rpm |
70rpm |
35rpm | ||
|
BOSCJ20 |
20N.M |
0.37 |
0.25 |
0.18 |
|
BOSCJ40 |
40N.M |
0.75(0.55) |
0.37(0.55) |
0.25(0.37) |
|
BOSCJ80 |
80N.M |
1.1 |
0.75 |
0.37(0.55) |
|
BOSCJ120 |
120N.M |
1.5 |
1.1 |
0.55(0.75) |
|
BOSCJ150 |
150N.M |
2.2 |
1.5 |
0.75(1.1) |
|
BOSCJ200 |
200N.M |
3 |
2.2 |
1.1(1.5) |
|
BOSCJ300 |
300N.M |
4 |
3 |
1.5(2.2) |
|
BOSCJ500 |
500N.M |
7.5 (5.5) |
5.5(4) |
4(3.0) |
|
BOSCJ800 |
800N.M |
11 |
7.5 |
5.5(4) |
|
BOSCJ1000 |
1000N.M |
15 |
11 |
7.5(5.5) |

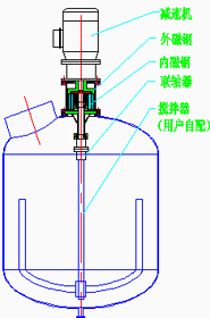

4.Installation dimensions:
