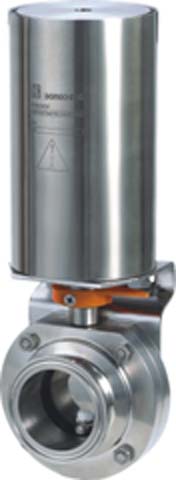

Pneumatic Butterfly Valve Operating Principle Technical Parameter Installing Dimension Documents Downloads
1.Product Desciption:
Standard: ISO, DIN, IDF, SMS
Material: SUS304,SUS304L,SUS316,SUS316L
Working principle:
Remote-controlled operation by the driving gear
Three drive forms:
a.Normally closed
b.normally opened
c. opened and closed by two air flues separately
Application:
Pharmacy, beer, food, dairy, beverage, cosmetic, chemical industry
Technical parameter
Max. Product pressure: 1000kPa (10bar)
Min. Product pressure: Vacuum
Range of temperature:
-10 º C- +95º C
Size:
DN25-150/1-6
2.Working principle:
3.Technical parameters:
Specs: DN20-150，1″-6″
Standard：DIN、SMS、ISO
Material：SUS304、SUS316L
Application：beer ，Dairy Industry，beverages，pharmaceutical
4.Installation dimensions:
|
Size |
D1 |
D2 |
D3 |
D5 |
H |
L |
|
3/4s |
16 |
19 |
80 |
|
|
47 |
|
1s |
22.4 |
25.4 |
80 |
85 |
225 |
47 |
|
1.25s |
29 |
32 |
80 |
|
|
47 |
|
1.5s |
35 |
38 |
80 |
85 |
225 |
47 |
|
2s |
48 |
51 |
100 |
85 |
234.5 |
52 |
|
2.5s |
59.5 |
63.5 |
117 |
85 |
244.5 |
54 |
|
3s |
72.3 |
76.3 |
130 |
85 |
247.5 |
56 |
|
3.5s |
85 |
89 |
140 |
|
|
60 |
|
4s |
97.6 |
101.6 |
156 |
133 |
389.5 |
64 |
