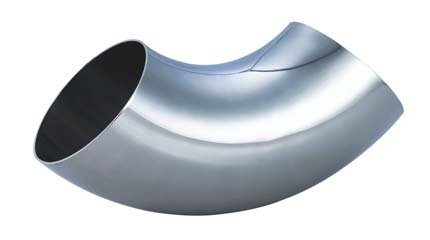

90° C welding bend elbow Operating Principle Technical Parameter Installing Dimension Documents Downloads
1.Product Desciption:
Specs: DN20-150，1″-6″
Standard：DIN、SMS、ISO
Material：SUS304、SUS316L
Application：beer ，Dairy Industry，beverages，pharmaceutical
|
Size |
D |
A |
|
1s |
25.4 |
33.5 |
|
1.25s |
31.8 |
38 |
|
1.5s |
38.1 |
48.5 |
|
2s |
50.8 |
60.5 |
|
2.5s |
63.5 |
83.5 |
|
3s |
76.1 |
88.5 |
|
3.5s |
88.9 |
103.5 |
|
4s |
101.6 |
127 |
|
4.5s |
114.3 |
152.4 |
|
5.5s |
139.7 |
190.5 |
|
6.5s |
165.2 |
228.6 |
2.Working principle:
3.Technical parameters:
4.Installation dimensions:
